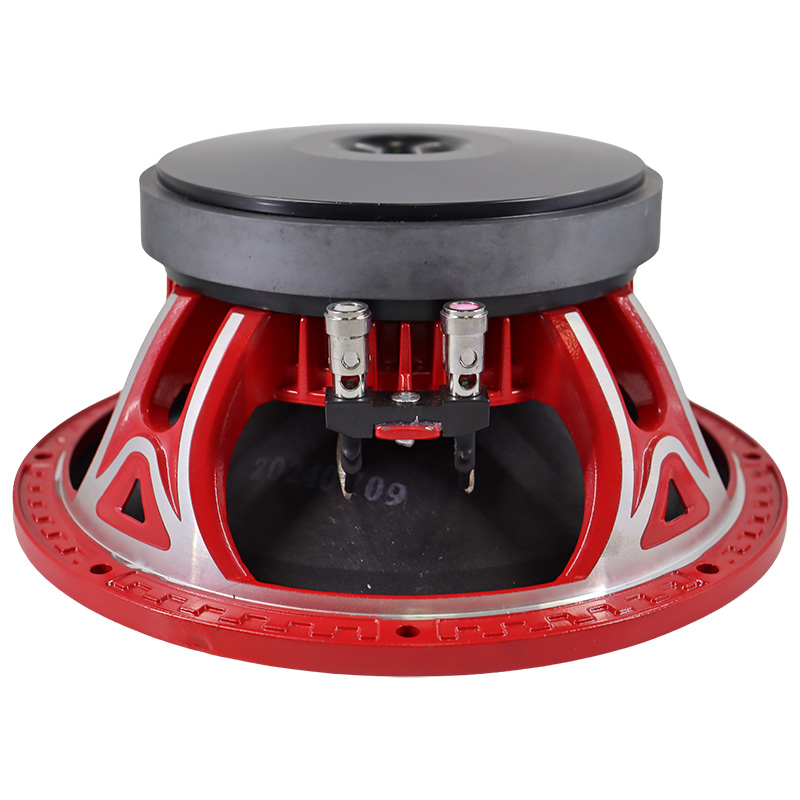

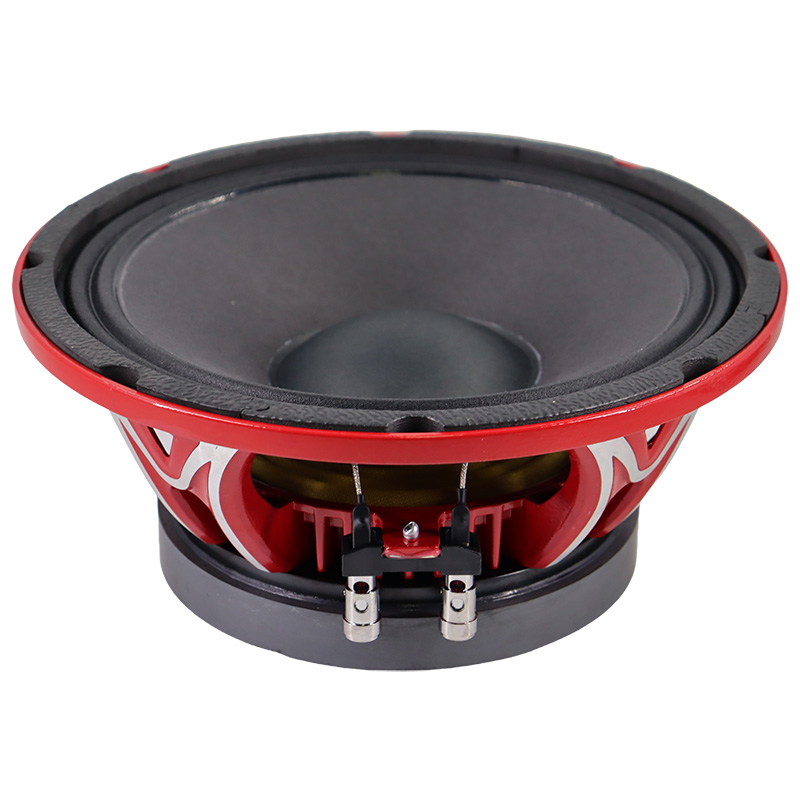

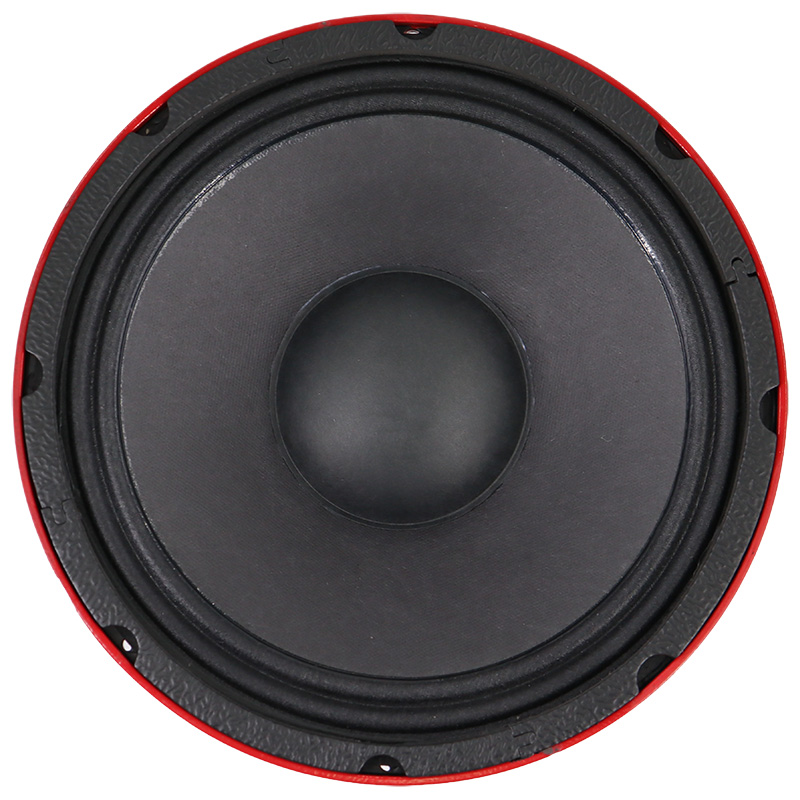

10KG650
10KG650
Impedance
Diameter
10"
Impedance
8Ω
Continuous Power
300W
Sensitivity
97dB
Voice Coil
51mm
Magnet
Ferrite
Frequency Range
55Hz-4kHz
Features
- 97 dB sensitivity
- 300 W continuous program power capacity
- 55 - 4000 Hz response
- Optimized ferrite magnet structure
General
Nominal Diameter10"
Minimum Impedance5.6Ω
Frequency Range55Hz-4kHz
Specifications
Nominal Power Handling150W
Continuous Power Handling300W
Program Power Handling400W
Sensitivity97dB
Voice Coil Diameter51mm
Winding MaterialCopper
Former MaterialPolyimide
Winding Depth18 mm
Magnetic Gap Depth6 mm
Flux Density1.15 T
Diaphragm MaterialNone HTHIELE - SMALL PARAMETERS
Parameters
Fs
60 Hz
Re
4.8Ω
Qes
0.32
Qms
6.0
Qts
0.3
Vas
35 dm³
Sd
330 cm²
Mms
40 g
Reference Efficiency
1.47%
Bl
15.0 Tm
Le
0.9 mH
EBP
188 Hz
Xmax
6.0 mm
Frequency Response
Design
Magnet MaterialFerrite
Mounting & Shipping Info
Overall Diameter270 mm (10.63 in)
Bolt Circle Diameter251 mm (9.88 in)
Baffle Cutout Diameter230 mm (9.06 in)
Depth105 mm (4.13 in)
Flange & Gasket Thickness8 mm (0.31 in)
Net Weight3.4 kg (7.5 lb)
Shipping Weight4.1 kg (8.99 lb)
Shipping Units1 pcs
