LF Drivers

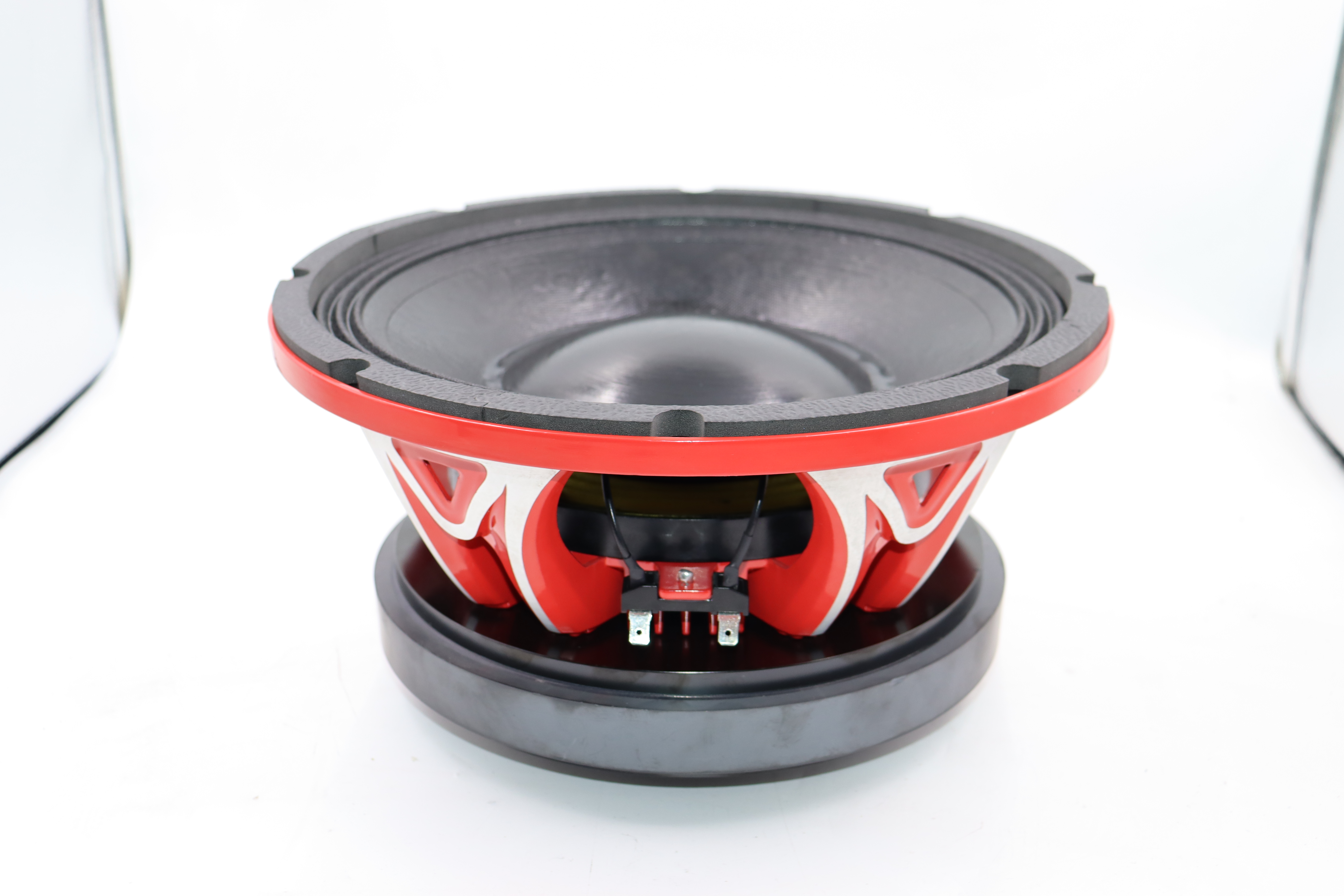

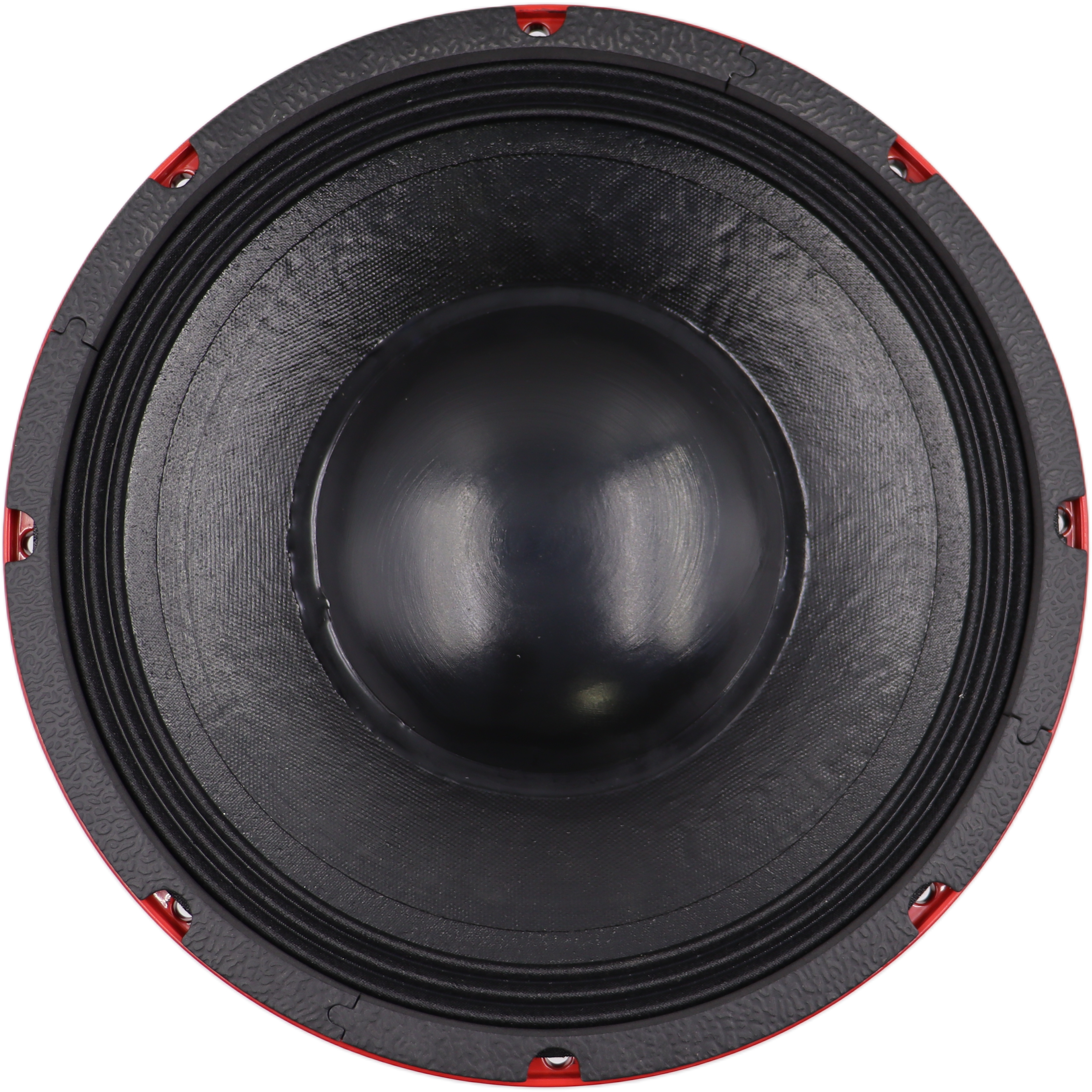

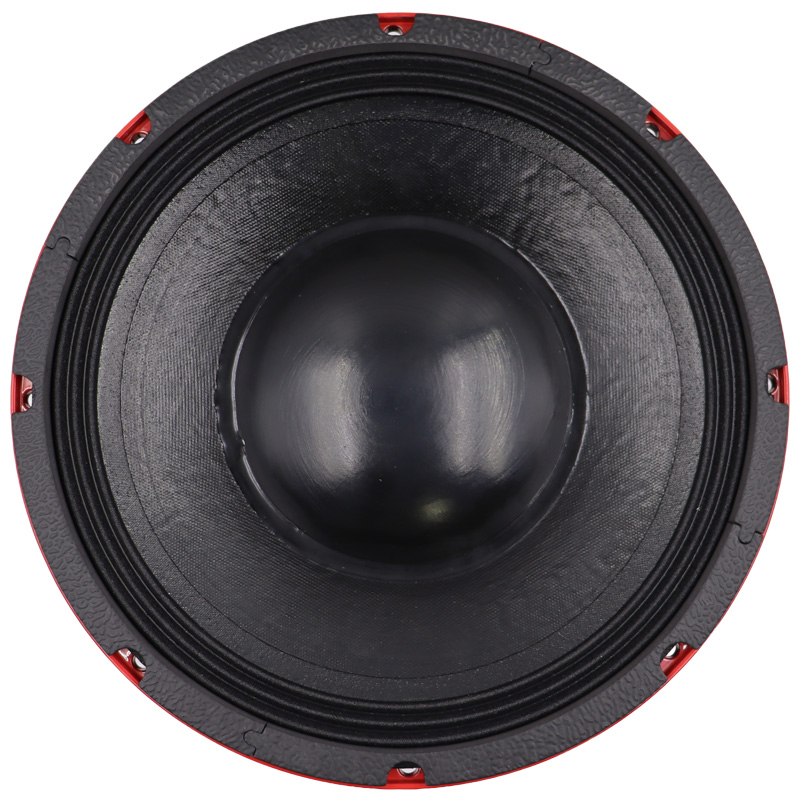

12LS70F
12" LF Driver
Impedance
Diameter
12"
Impedance
8Ω
Continuous Power
450W
Sensitivity
98dB
Voice Coil
65mm
Magnet
Ferrite
Frequency Range
45Hz–3kHz
Features
- 98 dB sensitivity
- 450 W continuous program power capacity
- 50 - 3500 Hz response
- Optimized ferrite magnet structure
General
Nominal Diameter12"
Minimum Impedance5.6Ω
Frequency Range45Hz–3kHz
Specifications
Nominal Power Handling225W
Continuous Power Handling450W
Program Power Handling1400W
Sensitivity98dB
Voice Coil Diameter65mm
Winding MaterialCopper
Former MaterialPolyimide
Winding Depth23 mm
Magnetic Gap Depth7 mm
Flux Density1.15 T
Diaphragm MaterialFront Sides All specifications subject to change without notice_E.a
Parameters
Fs
50 Hz
Re
4.5Ω
Qes
0.28
Qms
6.5
Qts
0.27
Vas
65 dm³
Sd
480 cm²
Mms
58 g
Reference Efficiency
1.28%
Bl
18.0 Tm
Le
1.0 mH
EBP
179 Hz
Xmax
10.0 mm
Frequency Response
Design
Magnet MaterialFerrite
Mounting & Shipping Info
Overall Diameter320 mm (12.6 in)
Bolt Circle Diameter301 mm (11.85 in)
Baffle Cutout Diameter280 mm (11.02 in)
Depth130 mm (5.12 in)
Flange & Gasket Thickness8 mm (0.31 in)
Net Weight4.2 kg (9.26 lb)
Shipping Weight5.0 kg (11.11 lb)
Shipping Units1 pcs
