Coaxials

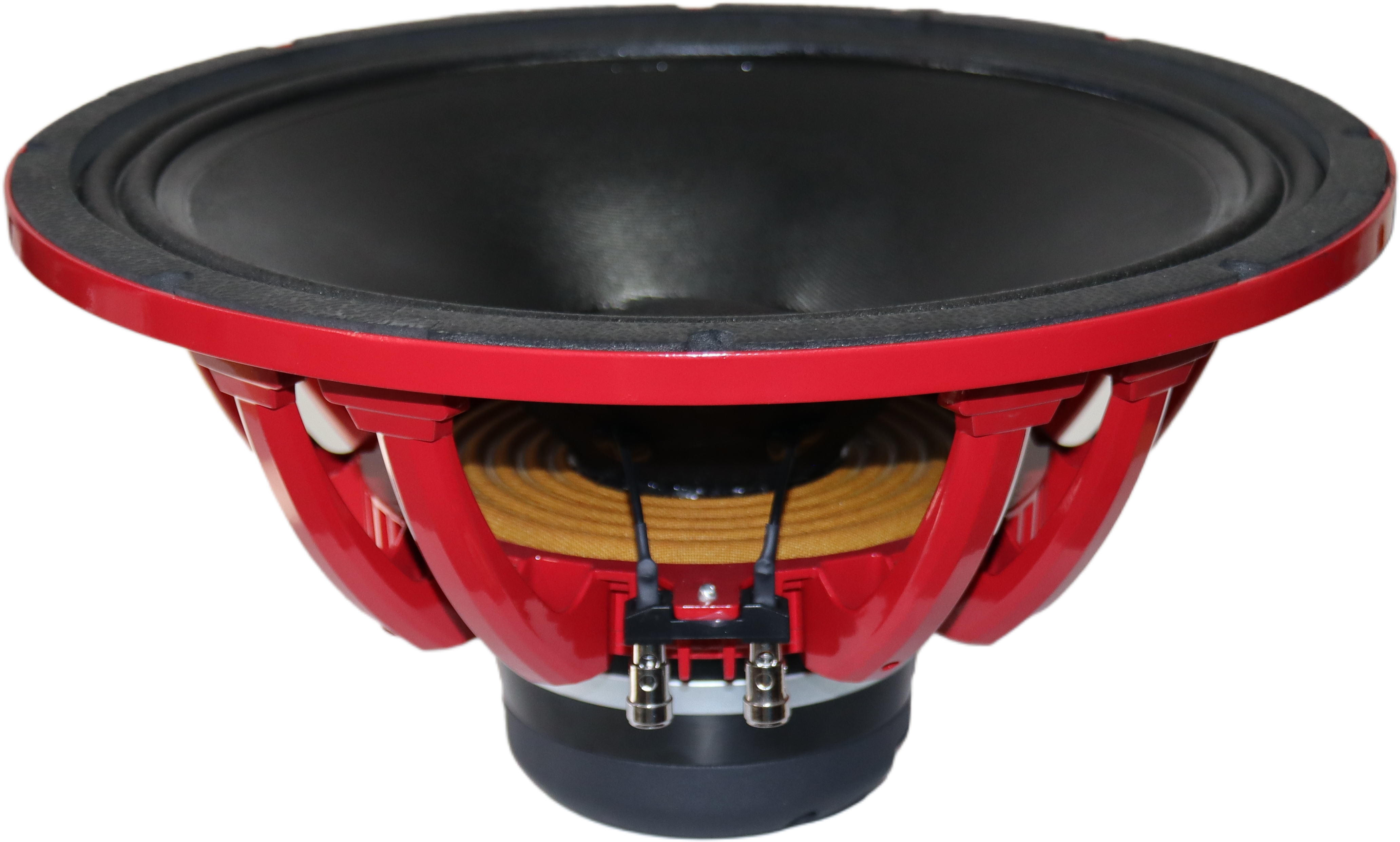

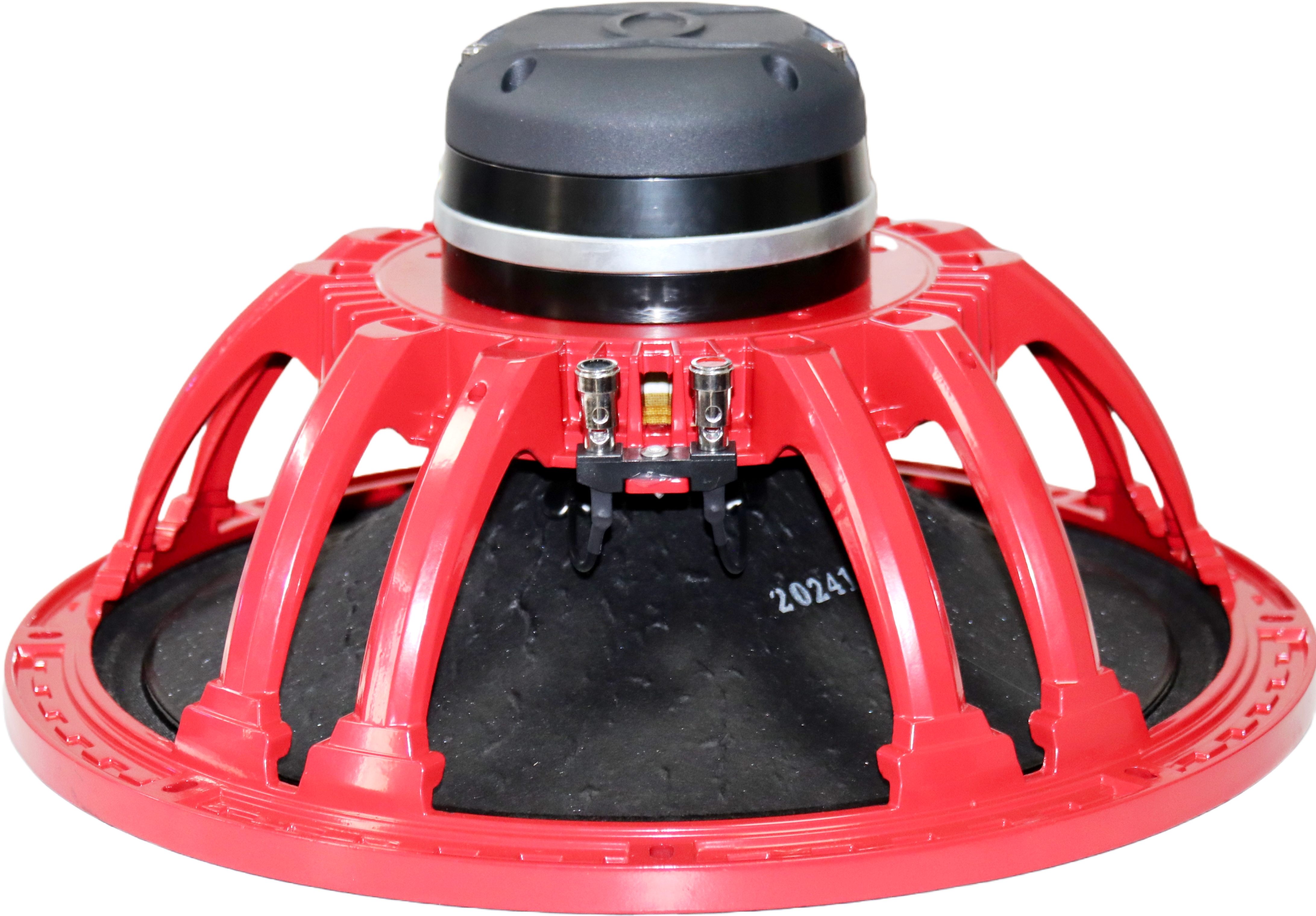

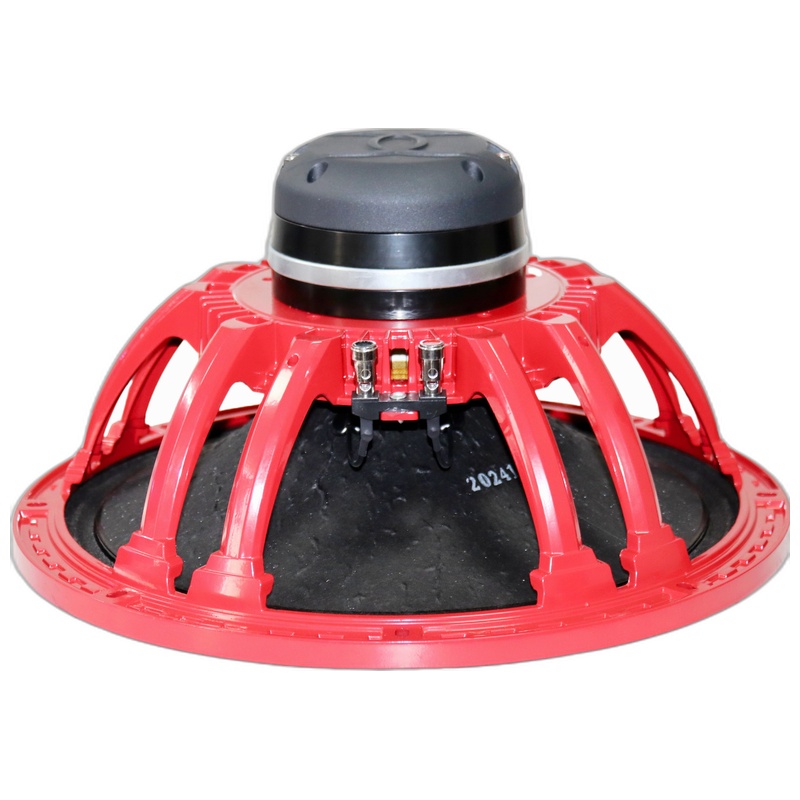

15CXA75

15" Coaxial Speaker

Impedance

Diameter 15"

Impedance 8Ω

Continuous Power 700W

Sensitivity 99dB

Throat 1"

Voice Coil 76mm

Magnet Neodymium Ring

Frequency Range 40Hz–20kHz

Product Inquiry Full Specifications

Features

99 dB sensitivity
700 W continuous program power capacity
40 - 3000 Hz response
Single Neodymium magnet assembly
Optimized for compact enclosures
Suitable for bass-reflex and horn-loaded cabinets
Integrated HF compression driver

General

Nominal Diameter15"

Minimum Impedance5.6Ω

Frequency Range40Hz–20kHz

Dispersion Angle80° H x 60° V

Specifications

Nominal Power Handling350W

Continuous Power Handling700W

Program Power Handling800W

Sensitivity99dB

Voice Coil Diameter76mm

Winding MaterialCopper

Former MaterialGlass Fibre

Winding Depth29 mm

Magnetic Gap Depth9 mm

Flux Density1.25 T

Diaphragm MaterialPhenolic

Recommended Crossover1.8 kHz

Throat Diameter1"

HF Voice Coil Diameter25 mm

Parameters

Fs 42 Hz

Re 5.2Ω

Qes 0.25

Qms 7.0

Qts 0.24

Vas 140 dm³

Sd 855 cm²

Mms 95 g

Reference Efficiency 1.8%

Bl 21.0 Tm

Le 1.2 mH

EBP 168 Hz

Xmax 7.0 mm

Frequency Response

Design

Magnet MaterialNeodymium Ring

Mounting & Shipping Info

Overall Diameter393 mm (15.47 in)

Bolt Circle Diameter374 mm (14.72 in)

Baffle Cutout Diameter354 mm (13.94 in)

Depth165 mm (6.5 in)

Flange & Gasket Thickness8 mm (0.31 in)

Net Weight3.9 kg (8.6 lb)

Shipping Weight4.7 kg (10.32 lb)

Shipping Units1 pcs
