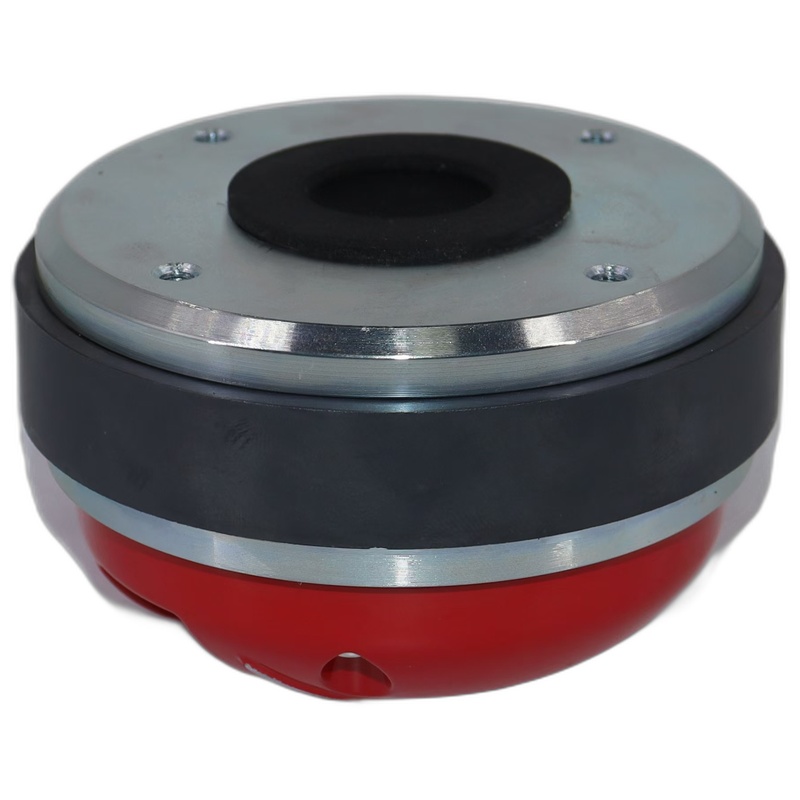

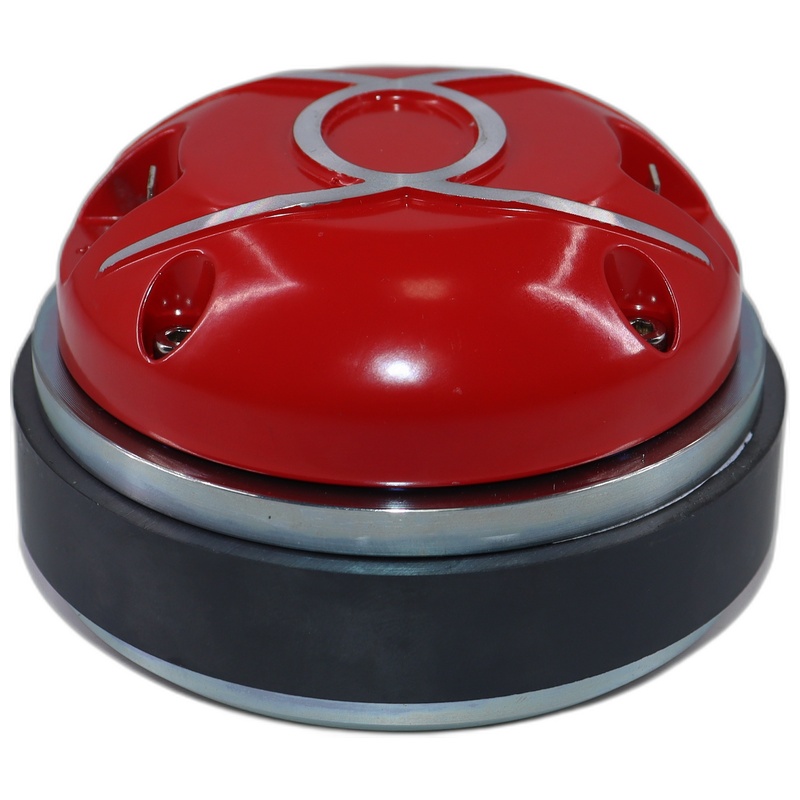

DF100
1" Compression Driver
Impedance
Diameter
1"
Impedance
8Ω
Continuous Power
80W
Sensitivity
107dB
Throat
1"
Voice Coil
44 mm (1.7 in)
Magnet
Ferrite
Frequency Range
1200Hz–18kHz
Features
- -44 mm(1.7 in) Edgewound CCA voice coil for high-power handling -Titanium diaphragm ensures crisp and clean high-frequency reproduction -1.5T flux density ferrite magnet structure -107dB sensitivity with 1200-18000Hz wide frequency range -Compact 102 mm(4 in) overall diameter for easy horn integration
General
Nominal Diameter1"
Minimum Impedance7.4Ω
Frequency Range1200Hz–18kHz
Dispersion Angle90° H x 60° V
Specifications
Nominal Power Handling40W
Continuous Power Handling80W
Program Power Handling80W
Sensitivity107dB
Voice Coil Diameter44 mm (1.7 in)
Winding MaterialEdgewound CCA
Former MaterialKapton
Flux Density1.5T
Diaphragm MaterialTitanium
Recommended Crossover2.5 kHz
Throat Diameter1"
HF Voice Coil Diameter25 mm
Parameters
Fs
-10Fs.Power calculated on rated minimum
Qes
0.85
Qms
4.2
Qts
0.71
Le
0.14 mH
Frequency Response
Design
Magnet MaterialFerrite
Mounting & Shipping Info
Overall Diameter102 mm (4 in)
Bolt Circle Diameter76 mm (3 in)
Depth61 mm (2.4 in)
Net Weight1.6 kg (3.5 lb)
Shipping Weight13.9 kg (30.6 lb)
Shipping Units8
