LF Drivers

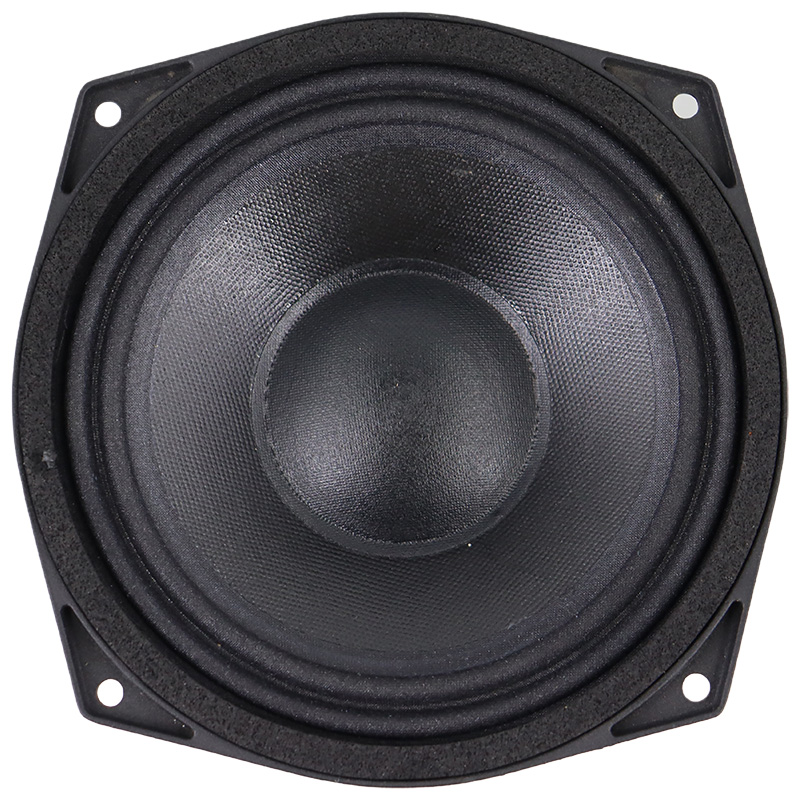

RS06N
6" LF Driver
Impedance
Diameter
6"
Impedance
8 Ω
Continuous Power
300W
Sensitivity
94dB
Voice Coil
51 mm (2 in)
Magnet
Ferrite
Frequency Range
100-4500Hz
Features
- 92 dB sensitivity
- 80 W continuous program power capacity
- 50 - 3500 Hz response
- Optimized ferrite magnet structure
General
Nominal Diameter6"
Minimum Impedance5.6Ω
Frequency Range100-4500Hz
Specifications
Nominal Power Handling150W
Continuous Power Handling300W
Program Power Handling300W
Sensitivity94dB
Voice Coil Diameter51 mm (2 in)
Winding MaterialCopper
Former MaterialPolyimide
Winding Depth23 mm
Magnetic Gap Depth7 mm
Flux Density1.15 T
Diaphragm MaterialFront Sides All specifications subject to change without notice_E.a
Parameters
Fs
100Hz
Re
5.2Ω
Qes
0.39
Qms
4.2
Qts
0.35
Vas
9 L
Sd
132 cm²
Xmax
5.3 mm
Frequency Response
Design
Magnet MaterialFerrite
Mounting & Shipping Info
Overall Diameter320 mm (12.6 in)
Bolt Circle Diameter301 mm (11.85 in)
Baffle Cutout Diameter280 mm (11.02 in)
Depth130 mm (5.12 in)
Flange & Gasket Thickness8 mm (0.31 in)
Net Weight4.2 kg (9.26 lb)
Shipping Weight5.0 kg (11.11 lb)
Shipping Units1 pcs
