LF Drivers

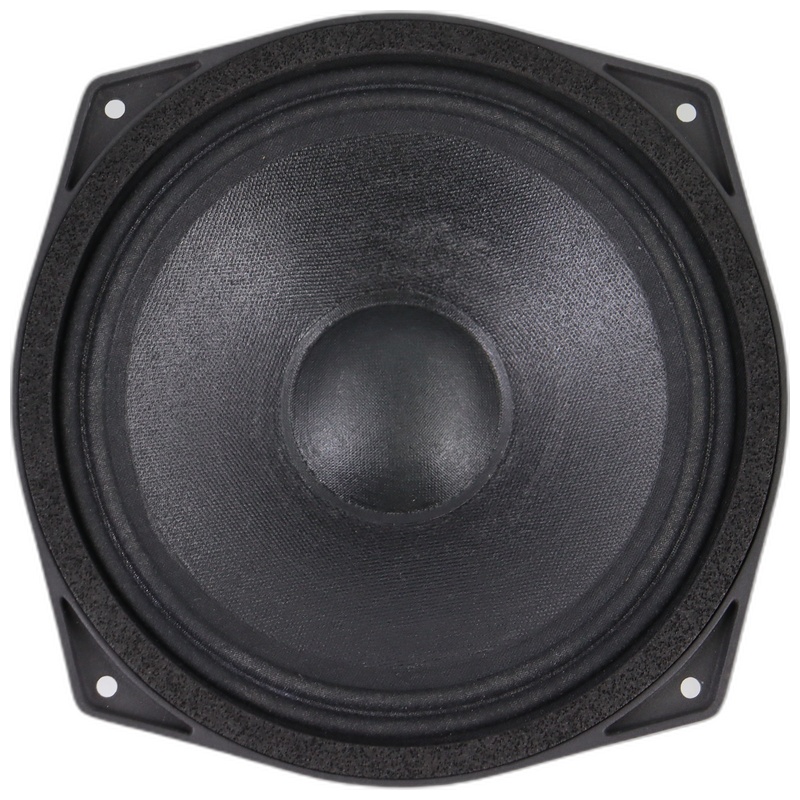

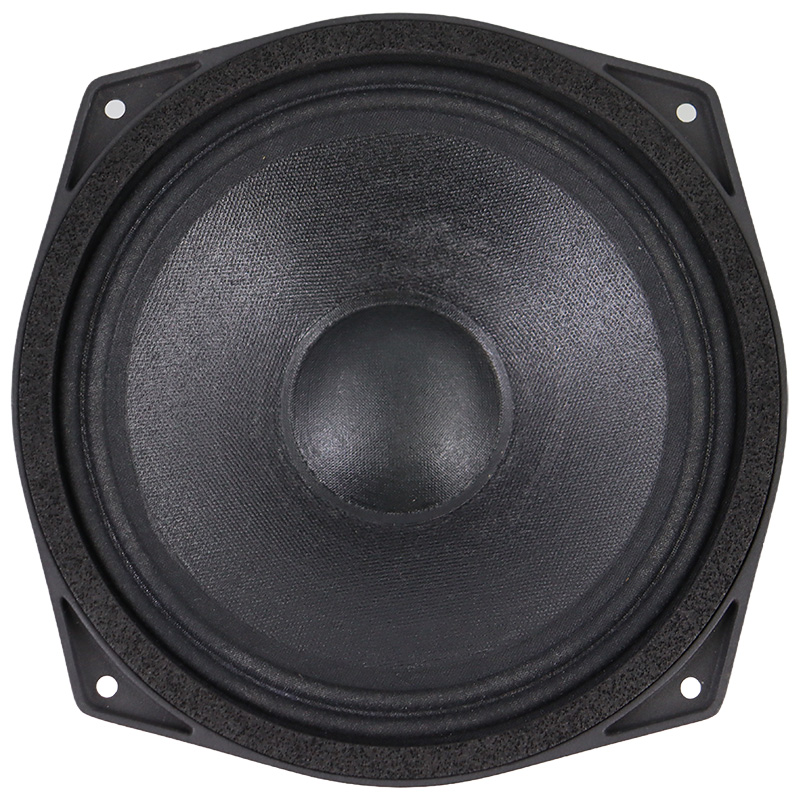

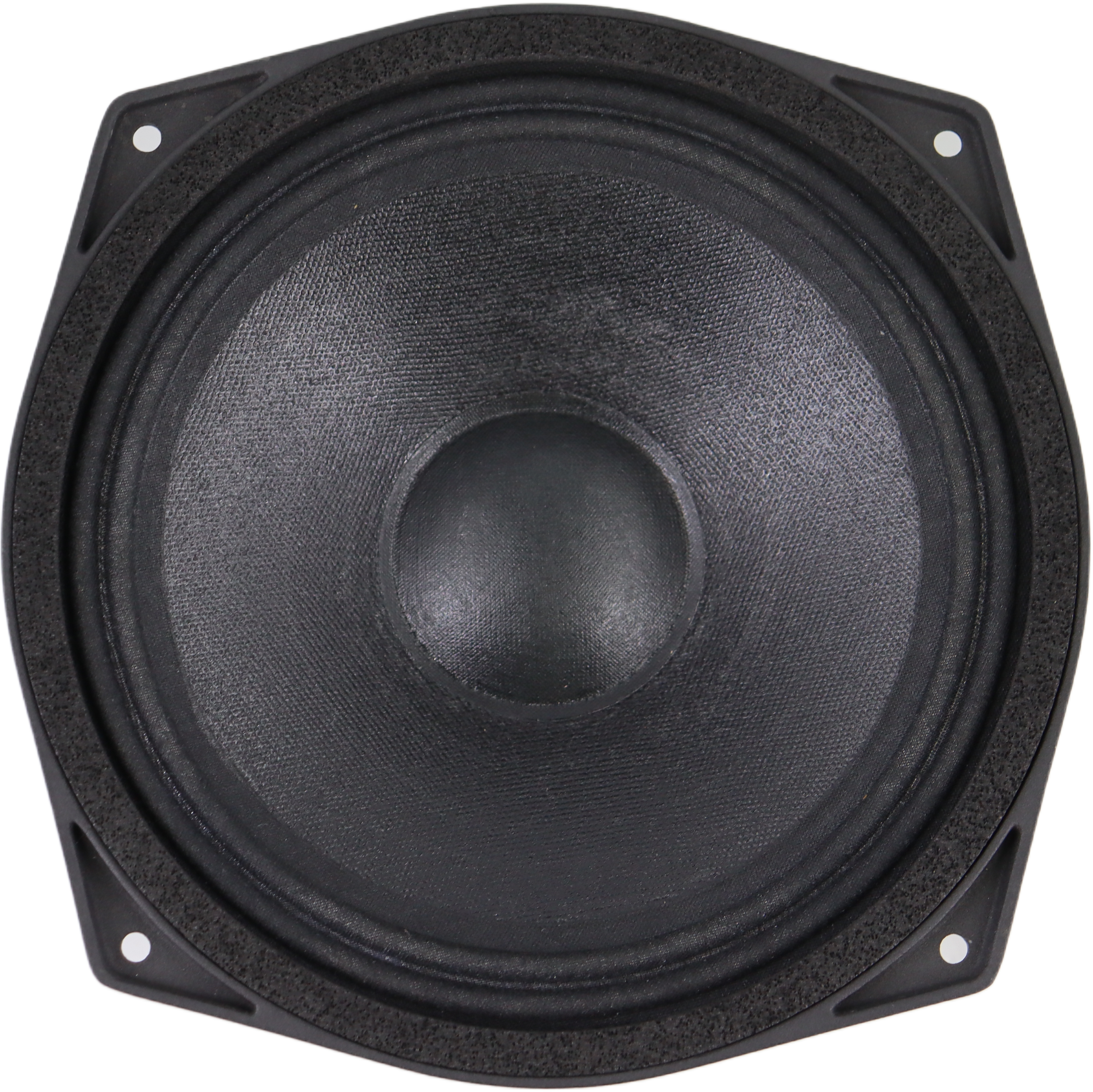

RS08N
8" LF Driver
Impedance
Diameter
8"
Impedance
8Ω
Continuous Power
500W
Sensitivity
95dB
Voice Coil
51 mm (2 in)
Magnet
Ferrite
Frequency Range
70-4000Hz
Features
- 94 dB sensitivity
- 150 W continuous program power capacity
- 50 - 3500 Hz response
- Optimized ferrite magnet structure
General
Nominal Diameter8"
Minimum Impedance5.6Ω
Frequency Range70-4000Hz
Specifications
Nominal Power Handling250W
Continuous Power Handling500W
Program Power Handling500W
Sensitivity95dB
Voice Coil Diameter51 mm (2 in)
Winding MaterialCopper
Former MaterialPolyimide
Winding Depth23 mm
Magnetic Gap Depth7 mm
Flux Density1.15 T
Diaphragm MaterialFront Sides All specifications subject to change without notice_E.a
Parameters
Fs
68Hz
Re
11.5Ω
Qes
0.54
Qms
7.4
Qts
0.22
Vas
15 L
Sd
480 cm²
Mms
58 g
Reference Efficiency
0.73%
Bl
18.0 Tm
Le
1.0 mH
EBP
179 Hz
Xmax
5.3 mm
Frequency Response
Design
Magnet MaterialFerrite
Mounting & Shipping Info
Overall Diameter320 mm (12.6 in)
Bolt Circle Diameter301 mm (11.85 in)
Baffle Cutout Diameter280 mm (11.02 in)
Depth130 mm (5.12 in)
Flange & Gasket Thickness8 mm (0.31 in)
Net Weight4.2 kg (9.26 lb)
Shipping Weight5.0 kg (11.11 lb)
Shipping Units1 pcs
